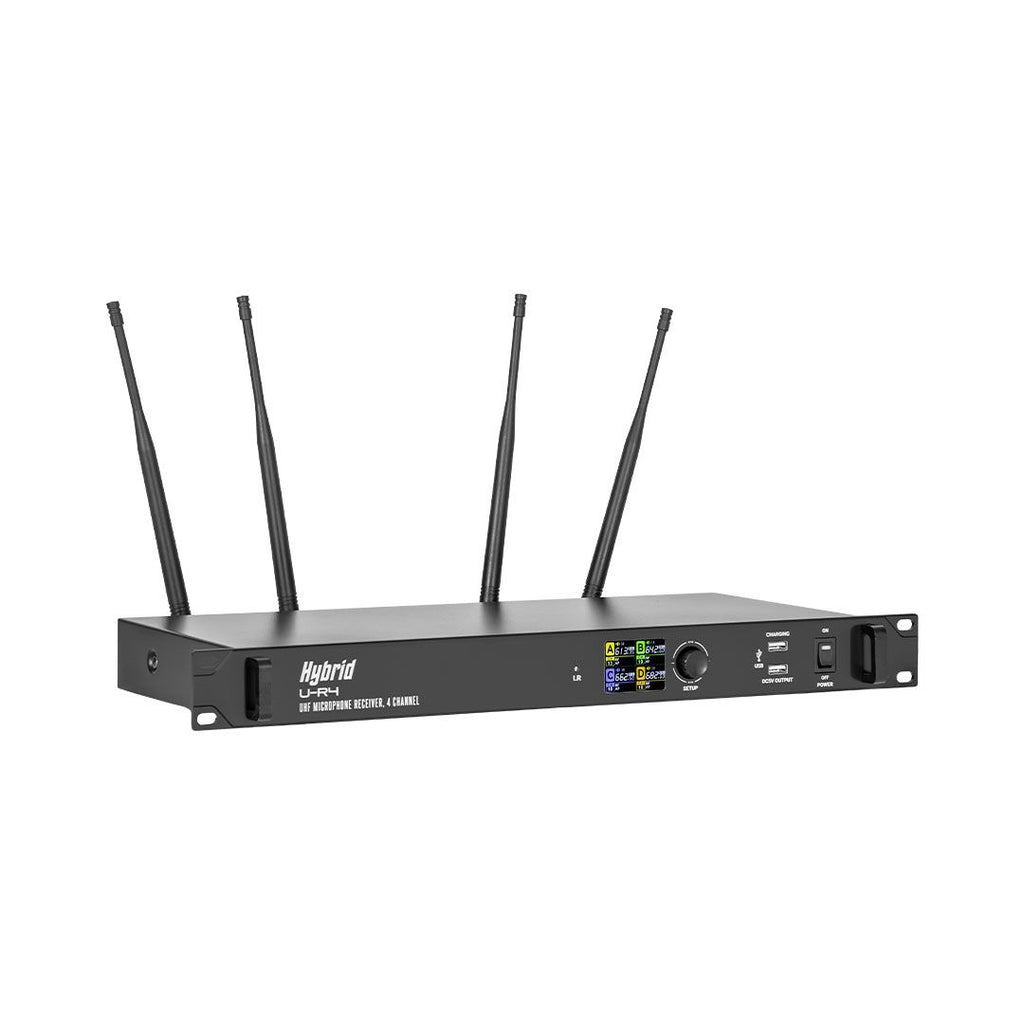

The Hybrid U-R4 Wireless Microphone System delivers professional, high-quality sound with UHF transmission for reliable performance and minimal interference. It features four channels, giving users the flexibility to choose their preferred transmitters, including handheld microphones, belt packs (with headset or lapel)
Specifications
Frequency range: UHF 470 – 786 MHz
Frequency response: 40 Hz – 18 kHz
Frequency stability: ±0.005 %
Modulation mode: Wide-band FM
Modulation range: 25 MHz
Channels: 50 RF channels per microphone
Working distance: 40 m
Channel spacing: 250 kHz
Dynamic range: 100 dB
Maximum deviation: ±45 kHz
AF response: 65 Hz – 15kHz (±3 dB)
THD: <0.5 %
Balanced audio output: ±500 mV
Power supply input: 220 – 240 VAC, 50/60 Hz DC
Power supply output: 13 – 15 VDC, 2000 mA
Power consumption: 30 W
S/N ratio: >98 dB
P/N ratio: >80 dB
F/N ratio: >80 dB
Sensitivity: 5 dBu
Weight: 1.5 kg
Dimensions (H x W x D): 50 x 480 x 190 mm
