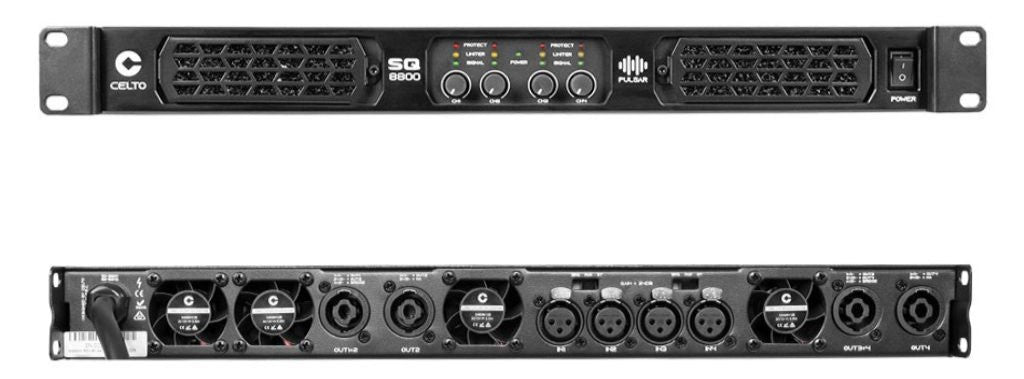

The CELTO SQ8800 amplifier has been designed to reproduce a studio grade experience, from superlative bass tones in extension, intensity and musicality, to smooth vocals and high frequency clarity.
Premium 2U flight case made from impact and wear resistant German BASF PP + fibre – Fully integrated flush hardware – Innovative latch mechanism – Ultra-portable with 420mm total depth – Securely stackable
Specifications
20Hz-20kHz 0.1%THD |
<.03% |
---|---|
8Ω Power (per channel): |
4x1300W |
4Ω Power (per channel): |
4x2200W |
Signal to Noise Ratio: |
>107dB(A) |
Frequency Response |
6~20,000Hz (-1dB) |
Crosstalk (1kHz): | >75dB |
Input Impedance: |
20 kΩ (Balanced) |
Maximum input: | +20dBu |
Amplifier slew rate: |
>60V/us |
Amplifier damping factor (8 ohms, 500Hz): |
>800 (internal) |
Preamp: | Ultra low distortion opamps with audiophile MUSE® Fine Gold capacitors |
Nominal Voltage Gain: | x50 (34dB) |
Cooling: |
Temperature regulated long life brush-less fans, front to back airflow |
Protection: |
Short-circuit, Over and Under-voltage, Over-current, Over-load, Temperature |
Input connectors: |
4 Balanced NEUTRIK® XLR |
Output connectors: |
4 NEUTRIK® SpeakON® NL4MP |
Power connector: |
SEETRONIC® Power Lock 20A |
Operating Voltage: |
90~260V AC |
Net Weight: |
6kg |
Gross Weight: |
7.5g |
Dimensions (W x D x H): |
483 x 400x 45mm |
Packaging Dimensions (W x D x H): |
500 x 450 x 90mm |
