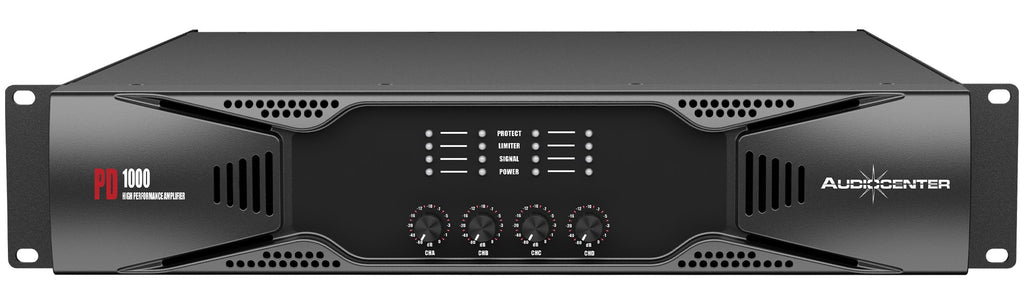

PD1000 is a professional four-channel power amplifier with high technology, premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.
PRICE ON REQUEST
Specifications
|
Output Power(1kHz, THD+N =1%) |
4x 1200W @8Ω stereo 4x 1850W @4Ω stereo 4x 1000W @2Ω stereo 2x 3000W @8Ω bridge 4Ω bridge not recomended |
|
Protection |
DC protection/Short circuit protection/ Smart overheat management/Overheat protection/Output overload protection / Soft startup protection/Limiter protection |
|
Working mode |
Stereo/Parallel/Bridge |
|
Crossover(High Pass/Low Pass) |
120Hz,-3dB |
|

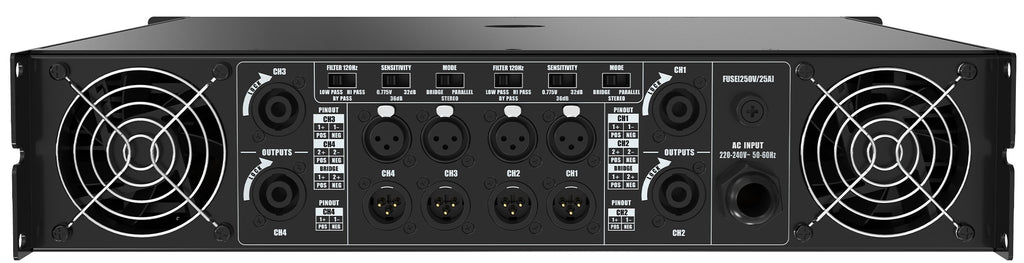

Input Connectors |
Male XLR & Female XLR |
|
Output Connectors |
Speakon 4Pin |
|
Input Impedance |
≥20kΩ(Balanced),≥10kΩ(Unbalanced) |
|
Maximum input voltage |
≥20dBu |
|
Sensitivity |
0.775V / 36dB / 32dB |
|
Frequency Response(1W 8Ω stereo) |
20Hz-20kHz(± 1dB) |
|
Crosstalk (1kHz, Rated power 8Ω A weighted) |
≥60dB |
|
S/N Ratio(Rated power 8Ω, A weighted) |
≥100dB |
|
Damping Factor (1kHz & 8Ω) |
≥400 |
|
Intermodulation Distortion(60Hz:7kHz=4:1,half power) |
≤0.1% |
|
THD+N (1kHz,8Ω half power A weighted) |
≤0.05% |
|
Output Circuitry |
Class H |
|
Power Supply |
100-130V~/220-240V~(±10%,50/60Hz) |
|
Power Consumption(1/8 output power) |
1680W |
|
Rack Space |
2U |
|
Cooling |
Back to front venting, mandatory cooling |
|
Dimension (W×H×D) |
483×88×457mm |
|
Net Weight |
27.0 kg |
