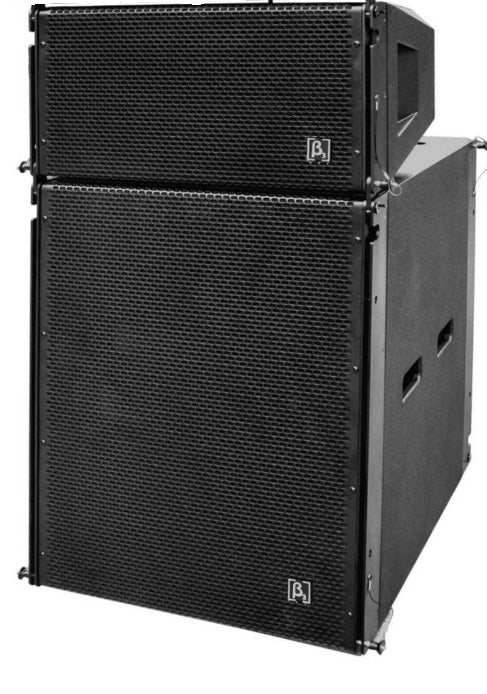

Single 18" Subwoofer + 2 Array tops
β3 VR Series Speaker is one of the VEYRON series speaker with a new shape structure and a new surface painting process to form a low frequency speaker. The unit is a medium to large sized line array system that can be used in applications including sound reinforcement for Houses of Worship, Events, Indoor Stadiums, Theme Parks, Multifunctional Auditoriums, Schools, and Transit Terminals etc. The VR Subwoofer Series line array loudspeaker delivers extraordinary performance and natural sounding music is required at unmatched value.
SUPPLIED WITHOUT HANGING FRAME
SPECIFICATIONS
| Construction | 18mm Birch Plywood |
| Transducers | 1 x 18” LF |
| Frequency Response (-3dB) | 45Hz-1KHz |
| Rated Power | 500W (RMS) |
| Sensitivity (1W @ 1m) - SPL | 97dBsens - 125dB/127dB Peak |
| Rated Impedance | 8Ω |
| Connector | 2 x NL4 |
| Dimensions (W x D x H) | 540mm x 653mm x 680mm |
| Packaging Dimensions (1 piece/pack) | 770mm x 625mm x 825mm |
| Net Weight (1 piece/pack) | 50kg |
| Gross Weight (1 piece/pack) |
55kg |
Array Spec
|
Construction: |
High pressure level two way passive line, array full frequency loudspeaker |
|
Transducer: |
2x44 mm Neo compression driver, 1X10inch Neo LF |
|
Frequency response (-3dB): |
55Hz-18kHz |
|
Sensitivity(1W@1m): |
97dB |
|
Maximum SPL(1m): |
118dB/124dB(Peak) |
|
power: |
250W(RMS),500W(PG),1000W(PK) |
|
Dispersion(H×V): |
100° × 30° |
|
Rated Impedance: |
8 Ohms |
|
Crossover point: |
1.6KHz |
|
Cabinet: |
15 mm plywood |
|
Installation: |
easy installation system |
|
Finish: |
Black polyurethane spray surface |
|
Connector: |
NL4×2 |
|
Cabinet Dimension (W×D×H): |
540×334×280mm(21.3×13.2×11.0in) |
|
Packing Dimensions (W×D×H): |
430×383×655mm(16.9×15.1×25.8in) |
|
Net weight: |
17.0kg(37.4 lbs) |
|
Gross weight: |
19.0kg(41.8 lbs) |
